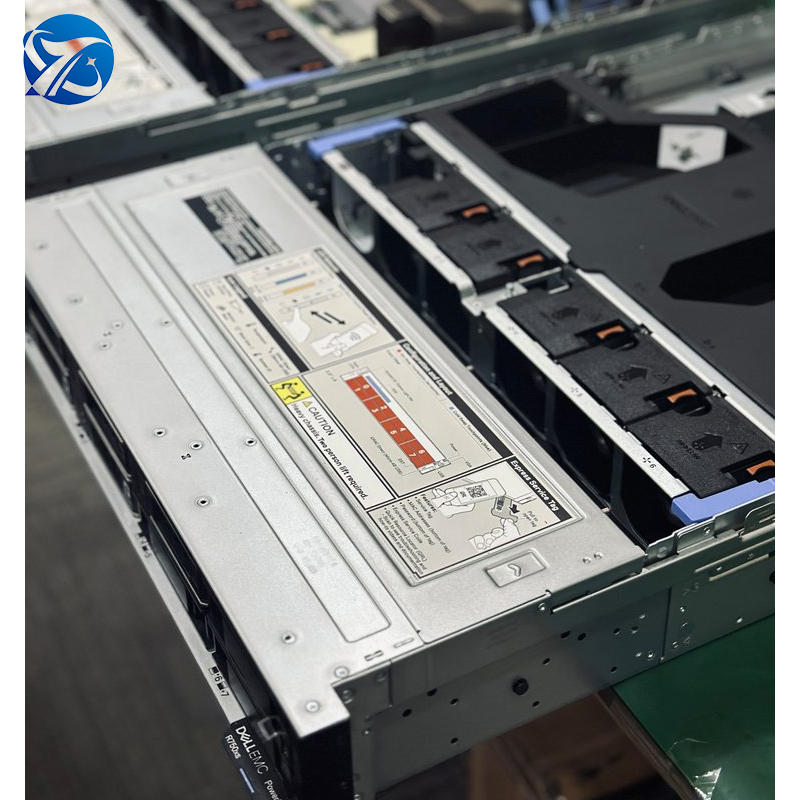

| Server Model | Dell EMC PowerEdge R760XD2 |
| Features | Technical Specifications |
| Processor | Up to two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor and with optional Intel QuickAssist Technology |
| RAM | Up to 16 DDR5 RDIMMs (up to 1TB supported) NVDIMM No DIMM Speed: up to 4800 MT/S |
| Storage controllers |
Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB
External HBA (non-RAID): HBA355e
Software RAID: S160
|
| Drive Bays |

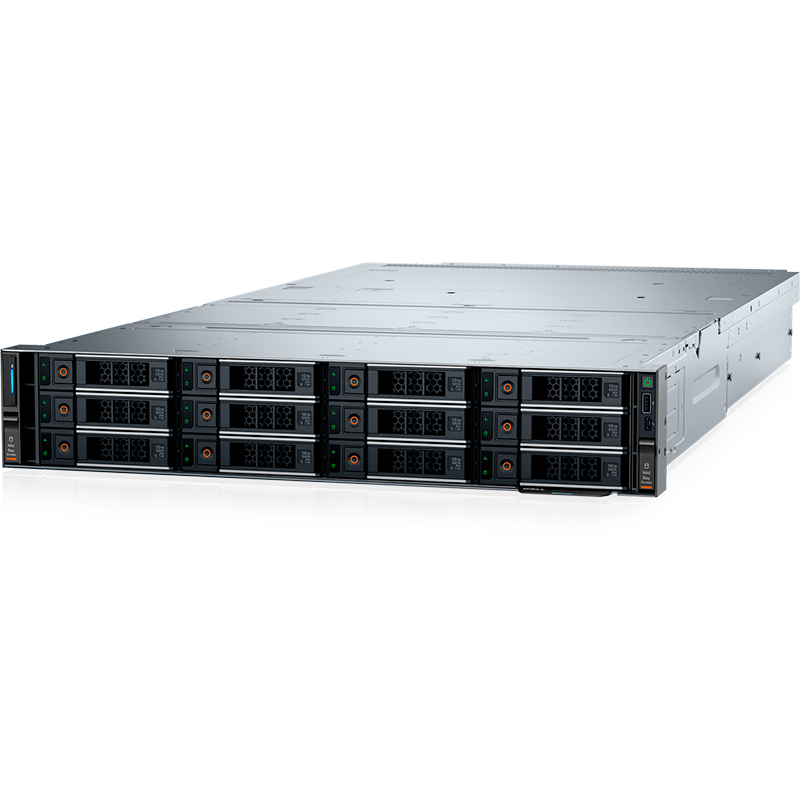

Front bays:
Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB
Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB
Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB
Rear bays:
Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
|
| Power supplies |
2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant
1100 W LVDC -48 — -60 VDC, hot swap redundant
800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
|
| Size |
Height – 86.8 mm (3.41 inches)
Width – 482 mm (18.97 inches)
Depth – 772.13 mm (30.39 inches) with bezel, 758.29 mm (29.85 inches) without bezel
|
| Fans |
Standard (STD) fans/High performance Silver (HPR) fans/ High performance Gold (VHP) fans
Up to 6 hot plug fans
|
| Outline specification | 2U rack server |
| Embedded management |
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module
Quick Sync 2 wireless module
|
| Embedded NIC | 2 x 1 GbE LOM |
| GPU options | Up to 2 x 350 W DW and 6 x 75 W SW |
| Port |
Front Ports:
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
1 x VGA

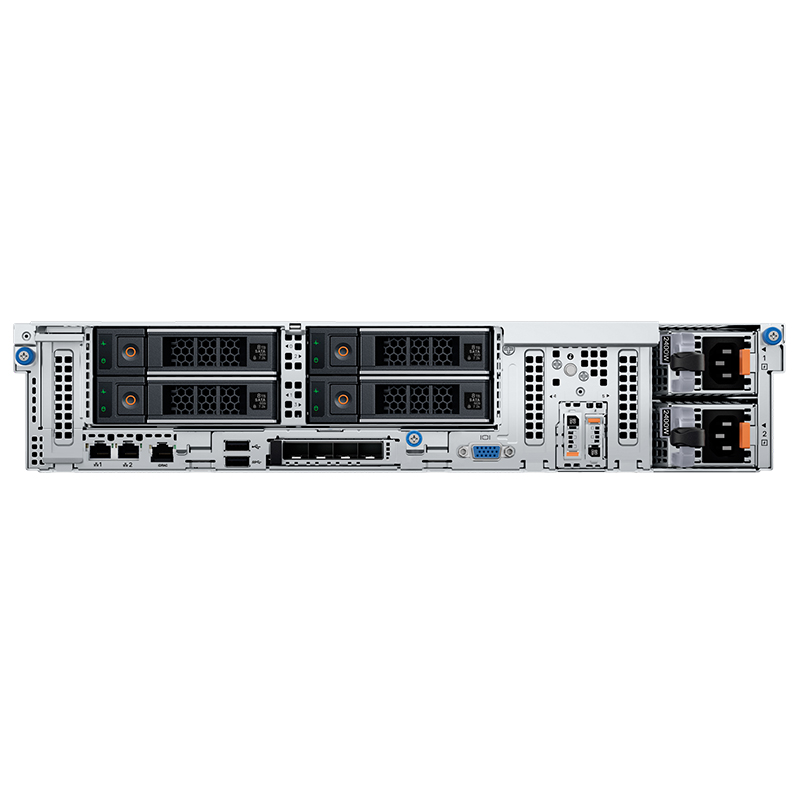

Rear Ports:
1 x Dedicated iDRAC Ethernet port
1 x USB 2.0
1 x USB 3.0
1 x VGA
1 x Serial (optional)
1 x VGA (optional for Direct Liquid Cooling configuration)
|
| PCIe |
Up to eight PCIe slots:
Slot 1: 1 x8 Gen5 or 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length
Slot 2: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length
Slot 3: 1 x16 Gen4 Low profile, Half length
Slot 4: 1 x8 Gen4 Full height, Half length
Slot 5: 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length
Slot 6: 1 x16 Gen4 Low profile, Half length
Slot 7: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length
Slot 7 SNAPI: 1 x16 Gen5 Full height, Half length
Slot 8: 1 x8 Gen5 or 1 x8 Gen4 Full height, Half length
|
| Operating system and hypervisor |
Canonical Ubuntu Server LTS
Microsoft Windows Server with Hyper-V
Red Hat Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi
For specifications and interoperability details, see the official operating system support page.
|
| Warranty | 3 years |
Meet your growing unstructured data needs with object storage technology designed to be easily configurable, serviceable, and scalable. This 2U, 2 socket server is ideal for file and object storage, video capture/retrieval, and content delivery networks.
